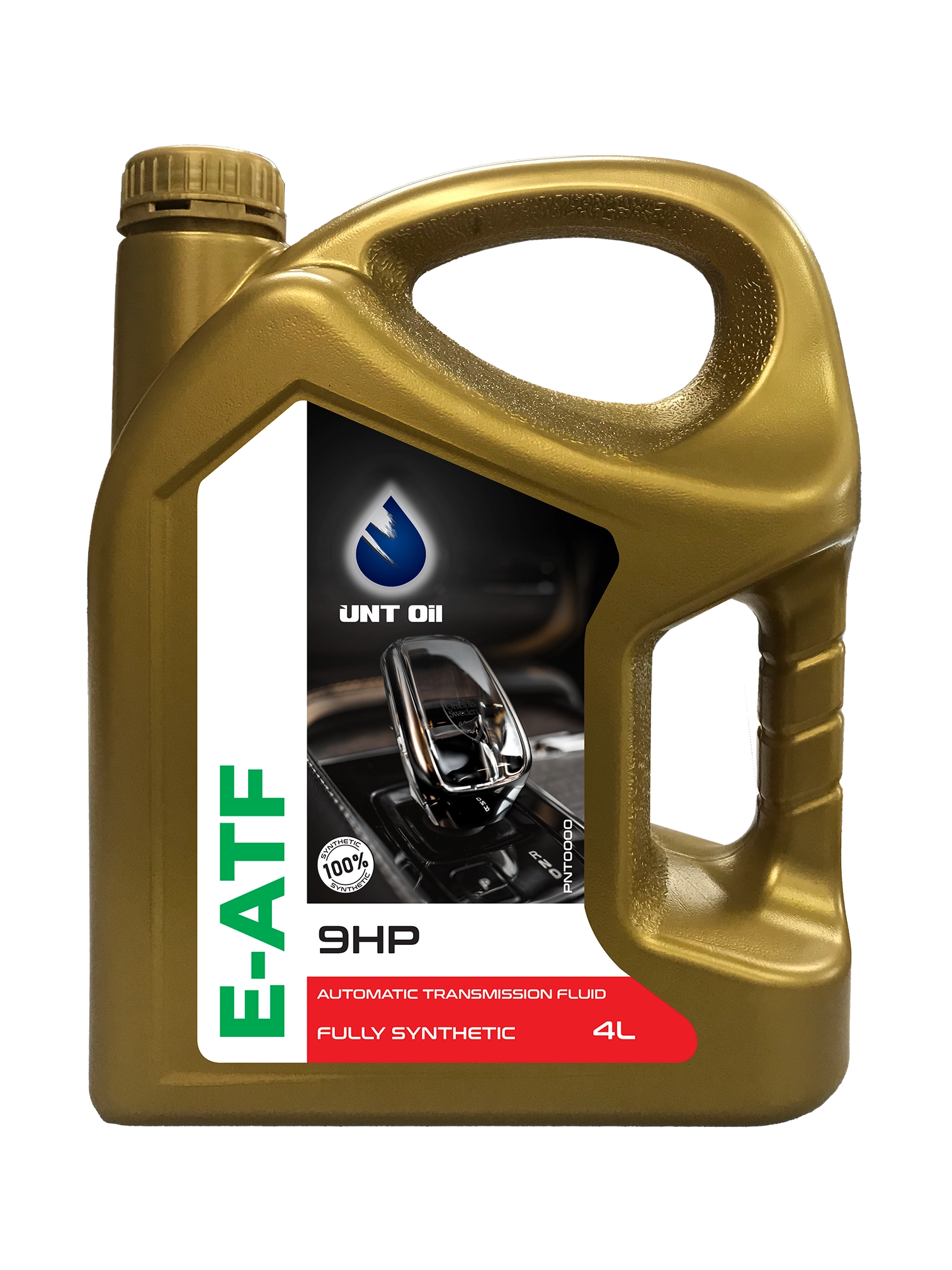

E-ATF 9HP
Fully synthetic automatic transmission fluid formulated using advanced technology allowing for very high performance needed for the demanding requirements of ZF 9HP automatic gearboxes. It is formulated with the latest additives available that ensures excellent oxidation stability and constant friction characteristics for a wide variety of 9-speed automatic transmission requirements.
This oil helps to reduce the entire driveline’s energy consumption while raising driving performance and driving comfort. Thus, it realizes all developed concepts in a cost-effective way. It is suitable for use in automatic transmission of the latest 9HP-Series (9-speed automatic transmissions), 8HPSeries and 6HP-Series. It is NOT suitable for use in DCT/DSG (double clutch) or CVT (continuously variable automatic) transmissions.
Properties
- Excellent thermal and oxidation stability
- Superior protection against wear, rust and corrosion
- Much enhanced fluidity at very low operating temperature
- Superb viscosity stability in operation
Specifications
- AISIN JWS 3324 ATF, ATF-0WS
- ATF 134
- ATF 3353
- ATF DX VI
- ATF L12108
- ATF M-1375.4
- ATF M-1375.6
- BENTLY P/N PY112995PA
- BMW ATF3+
- BMW ATF 6
- BMW M-L12108
- BMW P/N 83 22 0 142 516
- BMW P/N 83 22 0 397 114
- BMW P/N 83 22 2 152 426
- BMW P/N 83 22 2 163 514
- BMW P/N 83 22 2 289 720
- BMW P/N 83 22 2 305 396
- BMW P/N 83 22 2 305 397
- BMW P/N 83 22 2 355 599
- BMW P/N 83 22 2 355 601
- FCA 8 & 9 SPEED ATF, P/N 68218925AA/AB
- FCA AW-1, P/N 68092912AA
- FCA FIAT 9.55550-AV2
- FCA FIAT 9.55550-AV5
- FCA FIAT 9.55550-AV6
- FCA P/N 05127382
- FCA P/N 68157995AA/AB
- FCA SP-IV, P/N 68171866AA
- FCA SP-IV, P/N 68171869AA
- FORD P/N XT-10-QLV [LV]
- FORD P/N XT-6-QSP
- GM AW1, P/N 19256039
- GM DEX HP [GMW 16974]
- GM P/N 88863400
- GM P/N 88863401
- HONDA / ACURA ATF DW-1 P/N (08200-9008)
- HONDA / ACURA ATF Type 3.0 (08200-9016-A)
- HONDA / ACURA ATF Type 3.1 (08200-9017)
- HYUNDAI / KIA SP-IV
- HYUNDAI / KIA P/N 040000C90SG
- HYUNDAI / KIA SP4-M1
- HYUNDAI / KIA SPH-IV
- HYUNDAI / KIA SP-IV-RR
- HYUNDAI / KIA WS, SPEC NWS-9638
- ISUZU ATF WSI
- ISUZU SCS
- JAGUAR 02JDE 26444
- JAGUAR FLUID 8432
- JAMA JASO M315, CLASS 1-A-LV
- LAND ROVER AW-1 P/N LR0022460: LV
- LAND ROVER P/N TYK500050
- LAND ROVER LR 023288
- LAND ROVER LR 023289
- MASERATI OIL NO. 231603
- MAZDA ATF FZ
- MERCEDES / DAIMLER MB 236.12
- MERCEDES / DAIMLER MB 236.14
- MERCEDES / DAIMLER MB 236.41
- MITSUBISHI ATF-J3
- MITSUBISHI DIA QUEEN ATF-MA1, P/N MZ320775
- MITSUBISHI DIA QUEEN ATF-PA,P/N 4030401
- MITSUBISHI SP-IV
- NISSAN / INFINITY MATIC R, P/N 999MP-MTR00P
- NISSAN / INFINITY MATIC-S, P/N 999MP-MTS00P
- NISSAN / INFINITY MATIC-W
- PORSCHE P/N 000 043 304 00
- PORSCHE P/N 000 043 304 01
- PORSCHE P/N 000 043 305 43
- PORSCHE P/N 000 043 305 54
- PORSCHE P/N 000 043 306 24
- PORSCHE P/N 958 300 540 00
- SAAB P/N 93 165 147
- SUBARU ATF-WS
- SUZUKI MATIC S
- TOYOTA ATF FZ
- TOYOTA JWS 3324, ATF WS (or NWS9638)
- VOLVO P/N 31256774
- VOLVO P/N 31256775
- VOLKSWAGEN / AUDI G 052 533
- VOLKSWAGEN / AUDI G 055 005 A2
- VOLKSWAGEN / AUDI G 055162 A2 or A6
- VOLKSWAGEN / AUDI G 055 540 A2
- VOLKSWAGEN / AUDI G 060 162 A2
- ZF LIFEGUARDFLUID 6 (ZF No. S671 090 255)
- ZF LIFEGUARDFLUID 8 (ZF No. S671 090 312)
- ZF LIFEGUARDFLUID 9 (ZF No. AA01.500.001)
